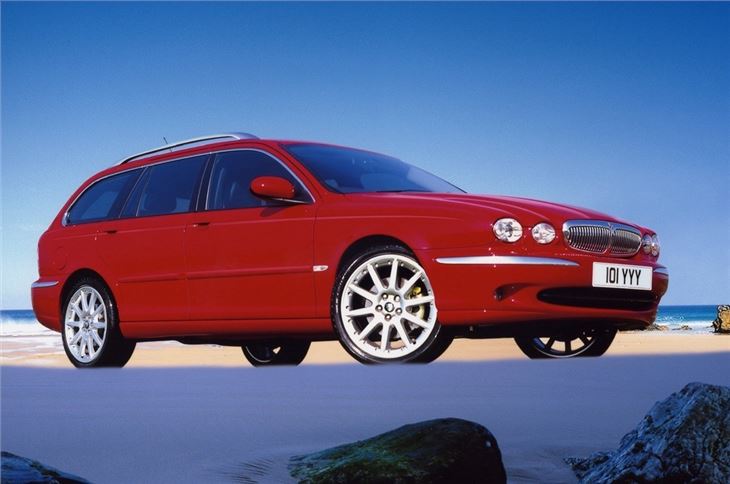

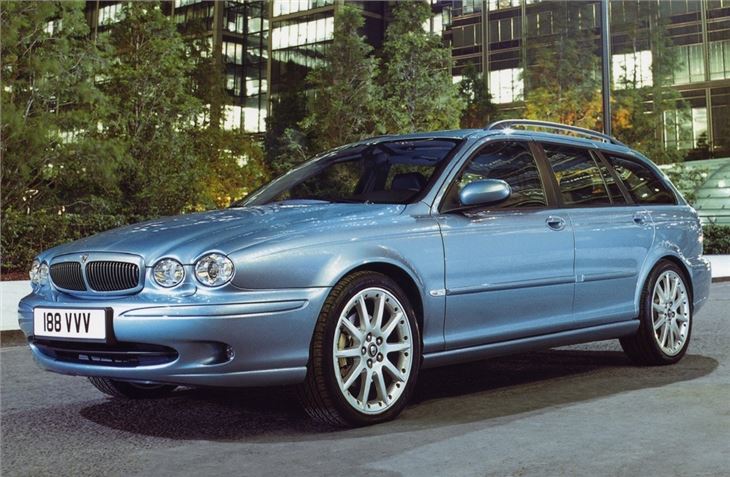

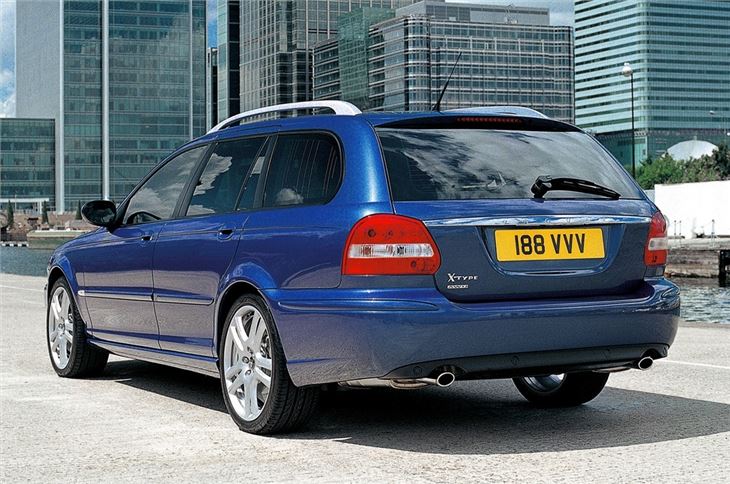

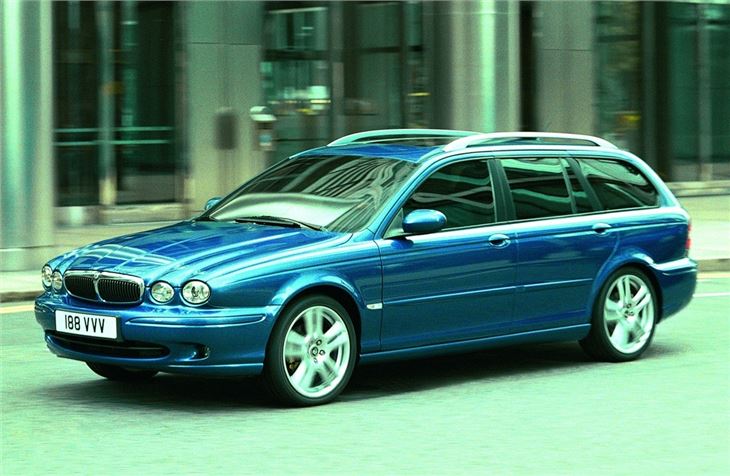

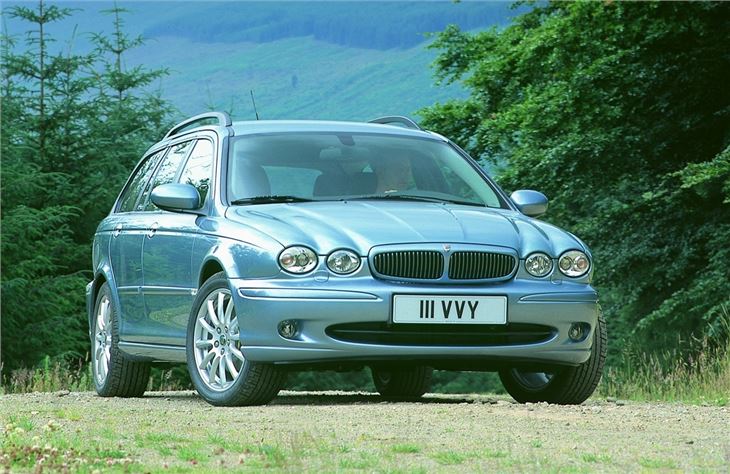

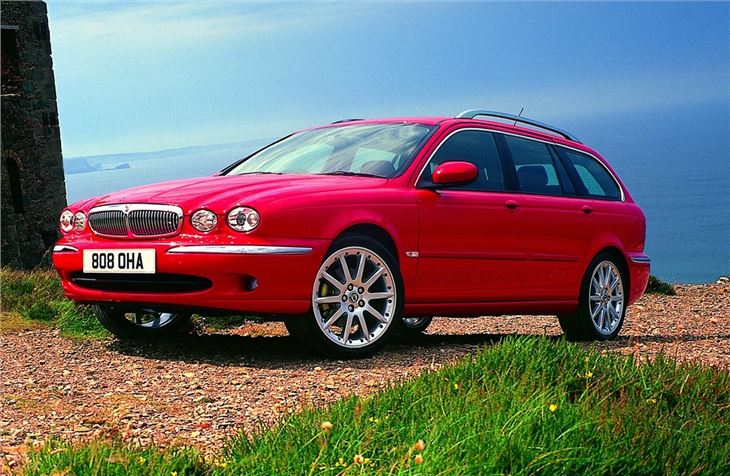

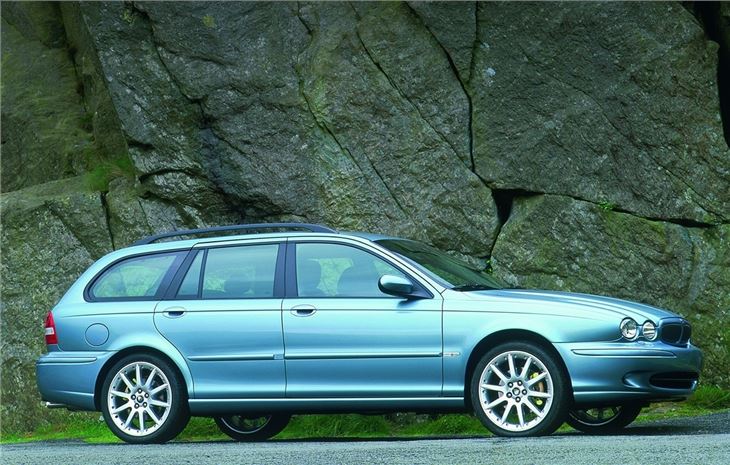

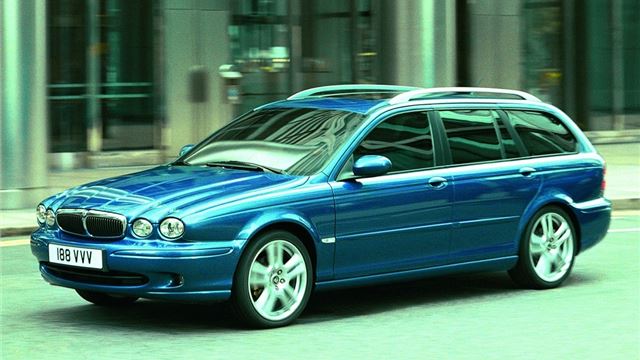

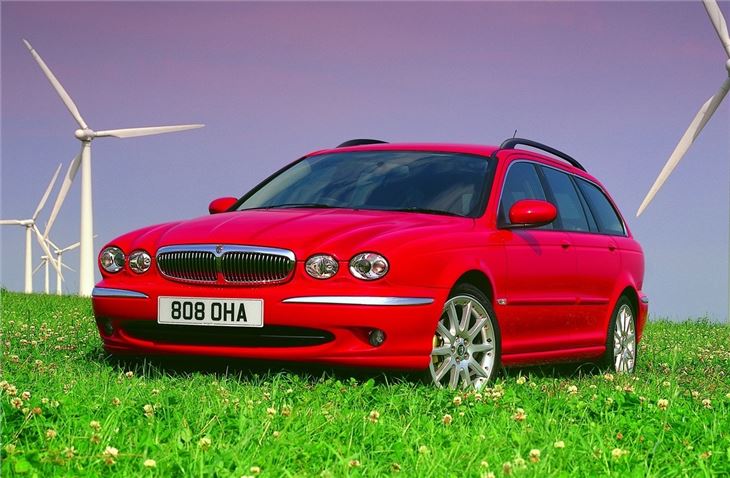

Jaguar X-Type Estate (2004 – 2009) Review

See entry for Jaguar X-Type saloon for the full list.

High incidence of DMF failures on 2.2 diesels during late 2009.

DPFs were only fitted as standard to facelift 2.2 diesel automatics. They were a rarely selected option on 2.0 diesel and 2.2 diesel manuals.

By early 2010, diesel pump failures also damaging the injectors were on the increase for both the 2.0 and 2.2 litre diesels.

On four wheel drive 2.5s and 3.0s, the front tyres can wear unevenly to the extent of serious wear on the inner shoulders. After 10,000 miles they need checking by applying almost full lock and having a look.

JATCO advises owners not to carry out AUTOMATIC transmission fluid changes hemselves because it's difficult to ensure the correct amount is added (the gearbox needs to be run to a specific temperature - This requires diagnostic equipment) and probably they will use the wrong oil, e.g. Land Rover Discovery ATF is different from a Land Rover Freelander, and Jaguar X-Type (Jatco) uses different ATF from a Land Rover Freelander (Jatco).

Rear tracking is adjustable for toe in / toe out, but cannot be set with some types of alloy wheel because they do not have continuous rims and confuse the laser. Too much toe in will make the steering very light. Too much toe out will lead to severe tyre inner shoulder wear.

Late X-Types on 08/09/10 reg best avoided as quality went down because a lot of the work force were working notice and because a lot of the cars sat in compounds for extended periods before being sold.

16-8-2011: On 2.5 and 3.0 V6, a rumble from the front may mean that the bottom crank pulley damper assembly 4659709 is starting to separate around the rubber insert in the middle of the flat dinner plate sized wheel. Costs £83.23 + vat. Pulley Assy £25.47 +vat and the V-Belt £17.86+vat Total Labour £82.00. Separation is usuallly more marked on the inside than the side one can observe. If it fails completely then engine is written off.

7-1-2012: Tip if 2.0 or 2.2 diesel will start, but refuses to tick over in cold weather. Probably caused by engine fuel pump valve sensor sticking. Withdraw dip stick, remove oil filler cap, and remove plastic engine cover which is only held by simple rubber grommets. The unit is located beside the radiator just behind the offside headlamp.a slight tap should release it.

21-2-2012: Apparently 2009 X Type diesels were fitted with clutches manufactured by either Borg & Beck or AP. Some have repeatedly failed and been replced by a more reliable LUK clutch.

4-8-2015: Report of sudden surging of 2004 Jaguar X-Type 2.2 diesel while decellerating. On braking hard, dash indicated "cruise control cancelled". This is the subject of a 2011 Recall: R/2011/108.

06-10-2004 R/2004/156 JAGUAR X-TYPE, S-TYPE AND XJ SERIES poor adhesion of space saver spare wheel speed restriction label. VIN SAJEA51C94WE00414 to SAJEB52D64XE06685, build dates 04-03-2004 to 30-03-2004

06-10-2004 R/2004/143 JAGUAR X-TYPE yaw rate sensor has internally delaminated. VIN SAJAF51T846D96890 to SAJEA51C84WE01716, build dates 19-02-2004 to 10/03/2004

08-12-2004 R/2004/146 JAGUAR X-TYPE modification of handbrake lever. VIN SAJAD53L21WC00294 to SAJAB53L63WD03128, build dates 02-01-2004 to 08-02-2004

25-07-2005 R/2005/077 JAGUAR X-TYPE (DIESEL ONLY) short circuit may occur. VIN SAJEA51C84WD55322 to SAJAH55T556E33691, build dates 20-08-2003 to 24-08-2004

22-09-2011 R/2011/108 JAGUARX-TYPE (2.2 diesel) cruise control may remain engaged. VIN SAJAF53136BE65409 to SAJAG5139ABJ63579, buld dates 01-05-2005 to 31-01-2010
